ACV E-Tech S

ACV E-Tech S

Compact floor standing combination electric boiler. Flexible installation options.

1. Tank-in-Tank Technology

2.
Can be used as a stand alone water heater

3.
Modulation based on heating demand

4.
Flexible installation options for flow and return connections

5.
Integral primary heating sealed system kit and circulating pump

6.
Small footprint enabling compact installation

7.
Integrated controls

8. Internal stainless steel tank-in-tank DHW storage

9. Boiler insulated with rigid polyurethane foam without CFC projected 70 mm.

10. Reduced Maintenance

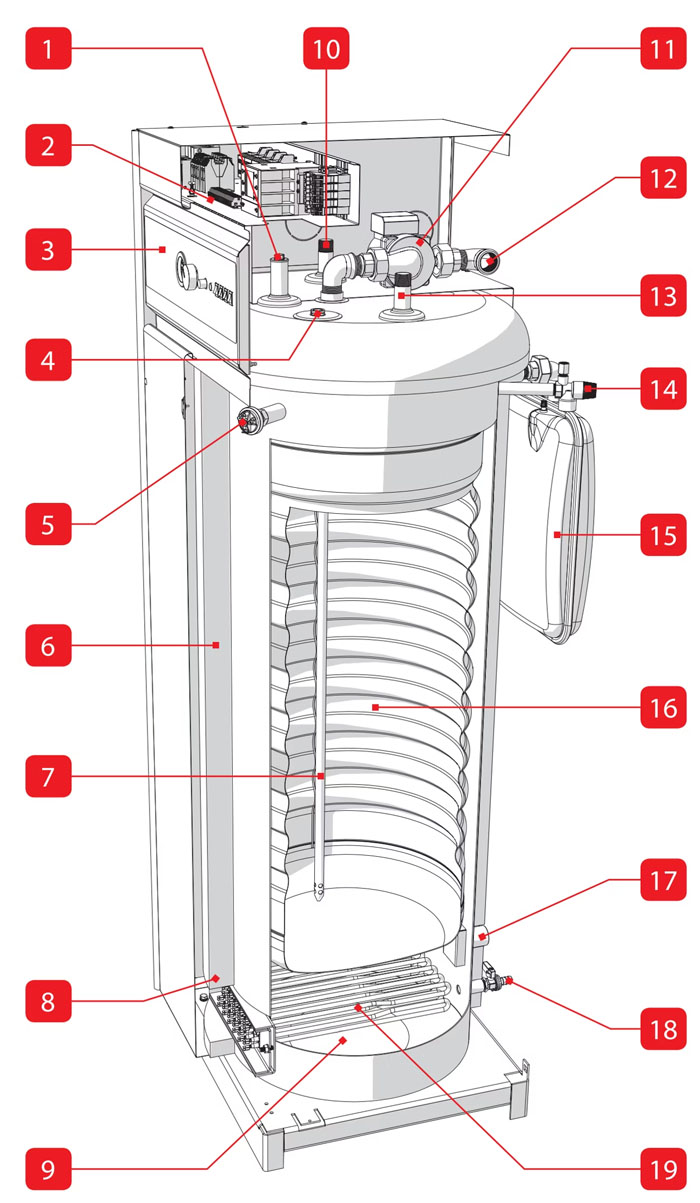

E-Tech-S
  • Auxiliary connection DHW
  • Electrical support
  • Control panel
  • Drywell for limit thermostats [90°C max] and thermometer bulbs
  • Low-water pressure switch
  • Thermal insulation
  • Dip tube
  • Drywell for control thermostat, safety thermostat [103°C] and bulbs.
  • Primary circuit
  • Cold water inlet
  • Heating pump
  • Heating circuit outlet
  • DHW outlet
  • Safety valve (3 bar)
  • Primary expansion vessel
  • Stainless steel tank [DHW]
  • Heating circuit return
  • Drain valve
  • Electrical heating elements

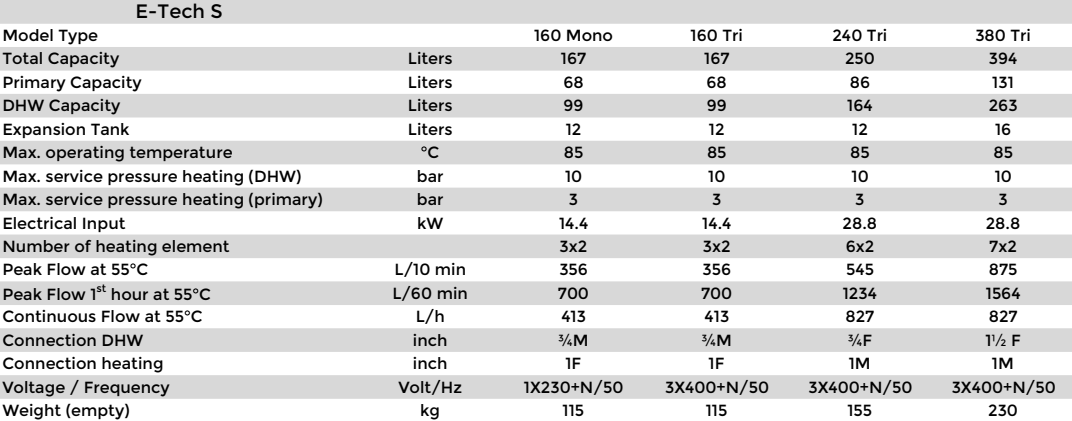

Specification Data

ETECH S
